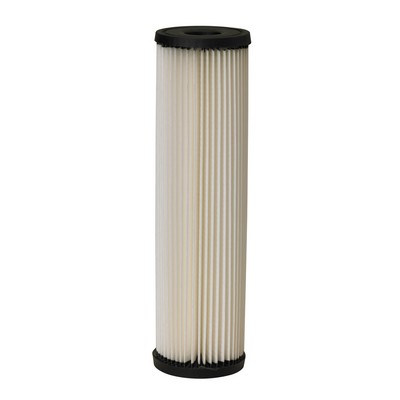

Pentek® S1 Series cartridges are manufactured from a pleated cellulose media and are designed for general water filtration purposes. The media is pleated around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat in this fashion fuses the three components together forming a unified end cap and gasket. The overlap seam is sonically welded to reduce bypass, improving filtration efficiency.
SPECIFICATIONS:
Model Number: Pentek 155001-43
Length: 9-3/4″
Diameter: 2-5/8″
Micron Rating (Nom.): 20
Filter Media: Resin-impregnated cellulose
Endcaps: Vinyl plastisol
Core: Polypropylene
Temperature Rating: 40°F to 145°F (4.4°C to 62.8°C)
Clean Filter Pressure Drop: 2.4 psi @ 10 gpm (0.17 bar @ 38 Lpm)
FEATURES:
Economically priced
Pleated design maximizes dirt holding capacity
Designed for general water filtration purposes
Recommended for chlorinated water supplies
