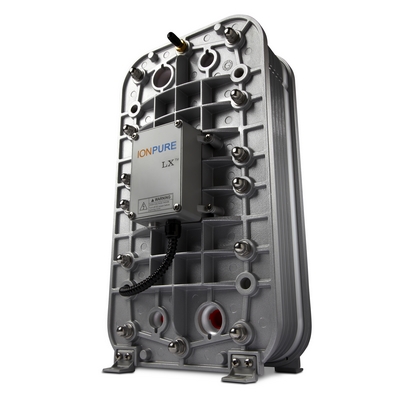

The IONPURE® LX-Z industrial modules produce high purity water through electrodeionization for a wide range of industrial applications. LX-Z modules consistently deliver maximum reliability and superior performance for power, HPI/CPI and general electronics applications without regeneration downtime.
Features:
Generates mixed-bed quality deionized water without the use of chemicals
Significantly lower operating costs compared to conventional ion exchange
No need for acid/caustic neutralization systems or exchangable DI tanks
Double o-ring seal guarantees leak free operation
Continuous production instead of batch, with consistent quality
Superior electrical isolation
Proprietary “all-filled” concentrating departments eliminate recirculation pump and brine injection
Typical Module Performance:
Recovery: 90-95%
Maximum Feed Pressure: 100PSI (7 Bar)
Pressure Drop Range at Normal Flow: 20-30PSI (1.4-2.1 Bar)
Maximum Feed Temperature: 113° F (45° C)
DC Voltage: 0-600
DC Amperage: 0-6
Product Water Quality – Minimum Flow*: 17 Megohm-cm
Product Water Quality – Nominal Flow*: 15 Megohm-cm
Product Water Quality – Maximum Flow*: 7 Megohm-cm
Silica (SiO2) Removal: 90-99% depending on operating conditions
Maximum Feed Water Specifications:
Feed Water Conductivity Equivalent including CO2 and Silica: <40µS/cm Feed Water Source: RO Permeate Temperature: 41-113° F (5-45° C) Inlet Pressure: 100PSI (7 Bar) Maximum Total Chlorine (as Cl2): <0.02 ppm Iron (as Fe): < 0.01 ppm Manganese (as Mn): < 0.01 ppm Sulfide (S2-): < 0.01 ppm pH: 4-11 Total Hardness (as CaCO3): < 1.0 ppm Dissolved Organics (TOC as C): < 0.5 ppm Silica (SiO2): < 1.0 ppm Flow and Physical Specifications for IP-LXM04Z: L (± 0.25" (6.4mm)): 10.12" (257mm) C (± 0.13" (3.2mm): 5.78" (146.8mm) Product Flow Minimum: 1.0GPM (0.22 m3/hr) Product Flow Nominal: 2.0GPM (0.44 m3/hr) Product Flow Maximum: 3.0GPM (0.67 m3/hr) Shipping Weight: 150lbs (68kg) Operating Weight: 100lbs (45kgs) Ionpure LX-Z Module Dimensions *Actual performance may be determined by using the IP-Pro projection software available from IONPURE. Typical module performance based on maximum Feed Water Conductivity Equivalent (40µS/cm)
