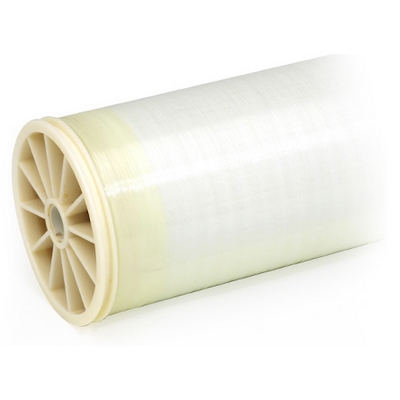

Toray TM720D-400 membranes are fiberglass-wrapped for use in brackish water treatment systems. TM700D series elements are high rejection, for high salinity brackish water applications. Toray reverse osmosis elements are functional membrane elements with excellent quality and high performance developed with the polymer engineering expertise Toray has gained over the years. Toray Reverse Osmosis Membrane Elements are high rejection and high flux RO elements.
PRICING IS LISTED FOR MEMBRANE QUANTITIES UP TO 12. FOR PRICING ON QUANTITIES LARGER THAN 12 ELEMENTS, PLEASE CONTACT CUSTOMERSERVICE@EVOQUA.COM TO GET A QUOTE FROM A LOCAL SALESPERSON.
SPECIFICATIONS:
Model Name: TM720D-400
Length: 40″
Diameter: 8″
34 mil feed spacer
Active Membrane: 400 ft2
Membrane Type: Composite Polyamide
Operating Pressure: 225 PSI
Maximum Pressure: 600 PSI
Permeate Flow Rate: 11,000 GPD
Nominal Salt Rejection: 99.8%
APPLICATION DATA:
Maximum Operating Temperature: 113°F (45°C)
Chlorine Tolerance: < 0.1 PPM
pH Range, Continuous Operation: 2-11
pH Range, Short Term Cleaning (30min): 1-13
Maximum Feed Water Silt Density Index (SDI): 5
Maximum Pressure Drop for Each Element: 15 psi
TEST CONDITIONS:
2000 mg/l NaCl solution
77°F (25°C) Operating Temperature
15% Permeate Recovery
7.0 pH Range
FEATURES:
For use in ultrapure water production for semiconductor and other industries, wastewater treatment, and many other applications
Remove up to 99% of total dissolved solids
Remove dissolved impurities such as chloride, lead, chromate, fluoride, bacteria, and others
High rejection
Includes one interconnector and brine seal
Replacement for part number TM720-400 (W2T370597)
