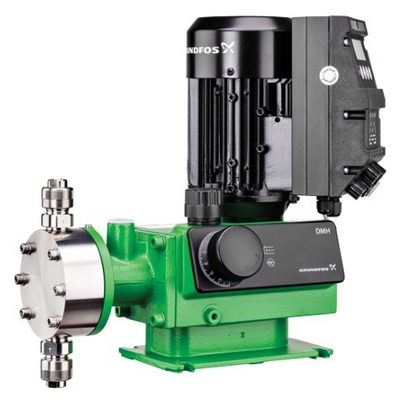

The Grundfos DMH range provides extremely strong, robust pumps for applications requiring a reliable dosing and high-pressure capability for high-pressure applications up to 2900 psi. The Hydraulic Diaphragm Metering Pump (DMH) is highly versatile for a wide flow range and offers a variety of dosing head sizes, materials and accessories.
DMH pumps have a very high dosing accuracy. Control the capacity by adjusting the stroke length from 0 to 100 % with a ± 1 % repeatable accuracy. The DMH range combines sophisticated drive technology and gear kinematics to ensure smooth and low-pulsation dosing. This means less stress on system components, such as tubes and valves, and leads to longer service intervals for the entire system.
SPECIFICATIONS:
Model Number: 95713628
Model Name: DMH 18-16
Type Key: AR-PVC-X/V/G-S-H1A9A9B
Max Capacity: 18 l/h
Max Pressure: 16 bar
Controls: Analog Relay
Dosing Head: PVC
Gasket: FKM
Valve Ball: Glass
Valve Type: Standard
Voltage: 1 x 110-120 V, 50/60 Hz
Connections: 1/2″ MNPT
Control Panel: Side
APPLICATIONS:
Power generation
Oil & Gas
Refineries
Pulp and paper industry
Textile industry
Food and beverage industry
Industrial process water and waste water treatment
Drinking water treatment
FEATURES:
Very accurate dosing
Dosing of flammable liquids
Full PTFE membrane offered as a standard
Manual or 4-20mA stroke length control
Duplex option for doubled capacity
Standard diaphragm protection system on all pumps
Internal relief valve
Capacity from 0.069 to 2 x 278 gph and up to 2900 psi; available in double-head versions
Integrated pressure relief valve and active diaphragm protection system (AMS)
Available with EX classified or ATEX-certified motors and API 675 certificate
