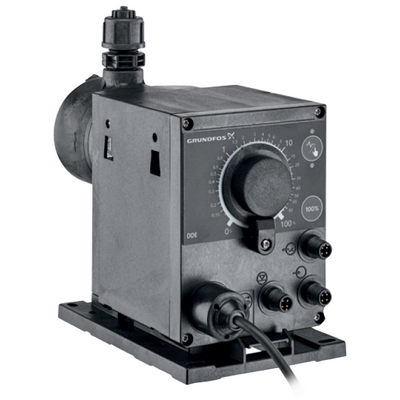

The DDE is a cost-effective entry-level model with all the benefits of Digital Dosing™ such as a maximum turn-down ratio of 1000:1 (max flow 4 gph or 15 l/h) and 800:1 (max flow 52.8 gph or 200 l/h) and smooth, continuous dosing.
The dosing rate is set using a logarithmic scale that runs from 0.1-100%. The model’s straightforward pulse control, external stop function, and empty level signal make it ideal for basic OEM applications. The SMART Digital XL DDE additionally offers an adjustable analog input.
SPECIFICATIONS:
Model Number: 97721063
Model Name: DDE 6-10
Type Key: B-PVC/V/C-X-31U7U7BG
Max Flow: 6 l/h
Max Pressure: 10 bar
Controls: Basic
Dosing Head: PVC
Gasket: FKM
Valve Ball: Ceramic
Valve Type: Standard
Connection: Tubing 0.17″ x 1/4″; 1/4″ x 3/8″; 3/8″ x 1/2″
Turndown Ratio: 1000:1
APPLICATIONS
Low-budget pump range with basic functions including manual operation or control via PLC for OEM applications
Car wash
Irrigation
FEATURES:
Digital Dosing™ even for the low budget segment
Flow and pressure from 0.0015 to 4 gph and up to 145 psi; two models cover entire range
Control options: manual control 0.1-100 %, pulse in % of stroke volume
External stop, empty tank control
