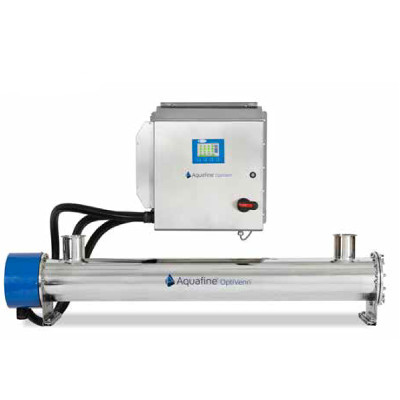

The OptiVenn Series is a family of robust and flexible UV Systems with advanced technology designed to meet the stringent requirements of Pharmaceutical, Food & Beverage, Microelectronics and other Industrial Markets. The treatment chamber is constructed of 316L SS with two finish options. The control panel is constructed of 304 SS and is equipped with a Universal Controller which provides control, monitoring and operational information in a single convenient location.
The treatment chamber and control panel are extremely compact, yet offer flexibility of installation to accommodate into different skid designs or as a stand-alone UV System.
Base package includes lamp status indicator, system hours of operation, lamp-out alert, and remote start/stop. For additional options and to configure your system, please contact your Evoqua Sales Representative for assistance.
STANDARD SPECIFICATIONS:
Model number: 01CDS
Flow Rate: 12GPM – 2,200GPM
Number of lamps: 1
Operating Power: 50W
Material of Construction (Chamber): 316L Stainless Steel
Lamp Length – in (cm): 15 (38)
Flange Size – in (cm): 2 (5)
Control Panel: UL Type 1, 304 Stainless Steel, Flat Top
OPTIONS:
Electrical supply
Tri-Clamp
UV Monitoring Package
UL Type 4X Rating with Sloped Top
Viton Elastomers
Ra15 Surface Finish
OptiVenn 01CDS can be used as an equivelant for Optima HX01BDMU and Optima HX02BDMU.
