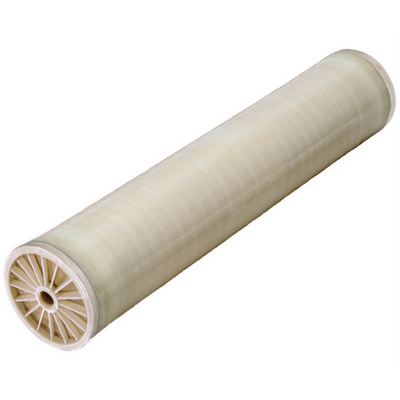

GE A-Series thin-film reverse osmosis membranes elements are characterized by high flux and high sodium chloride rejection. AG Standard Brackish Water Elements are selected when high rejection and operating pressures are as low as 200 psi (1,379 kPa) are desired. These elements allow moderate energy savings, and are considered a standard in the industry.
SPECIFICATIONS:
Length: 40″
Diameter: 8″
Weight: 42 lbs
Active Membrane: 400 ft2
Membrane Type: Thin Film Composite
Outer Shell: Fiberglass-wrapped
Operating Pressure: 225 PSI
Maximum Pressure: 600 PSI
Permeate Flow Rate: 10,500 GPD
Nominal Salt Rejection: 99.5%
APPLICATION DATA:
Maximum Operating Temperature: 122°F (50°C)
Chlorine Tolerance: > 1000 PPM
pH Range, Continuous Operation: 4-11
pH Range, Short Term Cleaning (30min): 2-11.5
Maximum Feed Water Turbidity (NTU): < 1
Maximum Feed Water Silt Density Index (SDI): < 5
TEST CONDITIONS:
2,000 ppm NaCl solution
77°F (25°C) Operating Temperature
15% Permeate Recovery
7.5 Range
